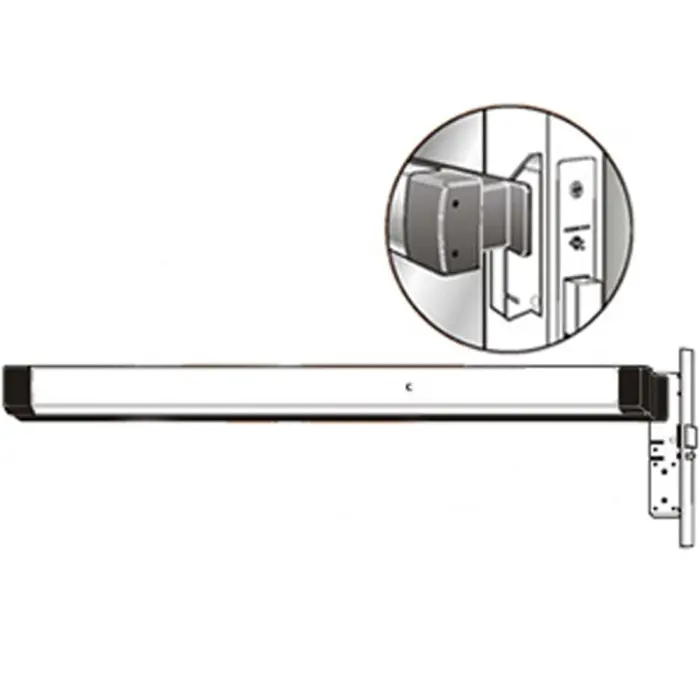

Description

Applications: Fits narrow, medium, and wide stile aluminum doors

Pushbar Length: Standard sizes dimensioned for 30″, 36″, 42″, and 48″ openings. Standard width bars can be field cut to the next smallest opening width.

Product Description & Features:
• Heavy duty deadlatching mechanism
• Strong, durable construction for a high level of security
• Easy to install
• Clean, unobtrusive design
• Pushbar clad or anodized, not plated, in a variety of finishes
• Fits standard cutout used for the Adams Rite MS Deadlock on aluminum stile glass doors

Specifications:

8400 Series Certifications:
• UL 305 Panic Hardware
• ANSI/BHMA A156.3 Grade 1
• California State Fire Marshall
• New York City MEA*
*Consult Factory for specific number

Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
Handing: Specify handing and bevel if applicable. Lever Entry Trim is field reversible.
Backset: Backsets available in 31/32″, 1-1/8″, and 1-1/2″;
Door Thickness: Suits 1-3/4″ standard. Can be modified for thicker doors.
Stile Width: Minimum 2″ Stile. Fits narrow, medium, and wide stile aluminum doors.
Projection: 2-5/8″ when fully projected, 1-5/8″when dogged.
Dogging: Standard dogging with hex key or cylinder dogging option. Electric dogging also available.
Fasteners: Standard self-tapping screws.
Cylinders: (available separately) See CYLINDERS for cylinder make, thumbturn and trim ring information.
Cylinder x Fixed Pull: (Function 03): Accepts any standard mortise cylinder with MS cam.
3080 Entry Trim (Functions 08, 09): Accepts any standard diameter mortise cylinder with MS cam. Accommodates cylinder lengths from 1″ to 1-1/4″. (Available separately).
Warranty: Five year limited.
Strikes: A variety of strikes are available for different applications and conditions. Standard strike (included), Extended Lip 8460-17 (available separately), Longface 8455-01 (available separately).

Thick and Cladded Door Kits:
• 91-0995-02* – 2″Thick Door Kit
• 91-0995-03* – 2-1/4″ Thick Door Kit
• 91-0995-04* – 2-1/2″Thick Door Kit
• 91-0995-05* – 2-3/4″ Thick Door Kit
• 91-0995-06* – 3″ Thick Door Kit
• 91-0325-01 Thermal Door Kit Cladding
• 91-0325-02 Thermal Door Kit Cladding
*Order 8460-XX Long Lip Strike as required.

Options and Accessories:

Silent Electrification Motorized Latch Retraction: The SE Motorized Latch Retraction option provides near-silent operation for quiet environments such as hospitals, offices, hotels, and libraries where solenoid-driven devices would be disruptive.

Electric Latch Retraction: The LR option uses a solenoid mounted in the pushbar for instantaneous unlocking and locking of the exit device from a remote location or access control device. LR option is not available on rim type exit devices (see EL option).

Alarmed Exit Device: This battery-operated option emits a loud (95 decibel) alarm to notify management of unauthorized exit. Available on minimum opening width 36″. Cannot be ordered with other exit device options.

Request to Exit (REX) Monitor / Signal Switch: Mounted in the exit device pushbar on the hinge end, the switch can be used to activate signal light, horn, monitor, or other devices.

Cylinder Dogging: For management control of dogging exit devices for life-safety exit devices only.

Electric Dogging: A holding magnet keeps the pushbar depressed (set manually) and the latch retracted for lower profile exit devices, resulting in less damage and quieter operation.

Matching End Caps: Matching end caps are available for applications where it is preferable that the end caps match the finish of the exit device. Available for US finishes only.
