Description

Product Description & Features:
• Patented “Starwheel” bolt interlocks door to frame
• Strong, durable construction for a high level of security
• Easy to install
• Unobtrusive design for clean sight lines
• Alarmed BAttery

Specifications:

8800 Series Certifications:
• UL 305 Panic Hardware
• ANSI/BHMA A156.3 Grade 1
• California State Fire Marshall
• New York City MEA*
*Consult Factory for specific number

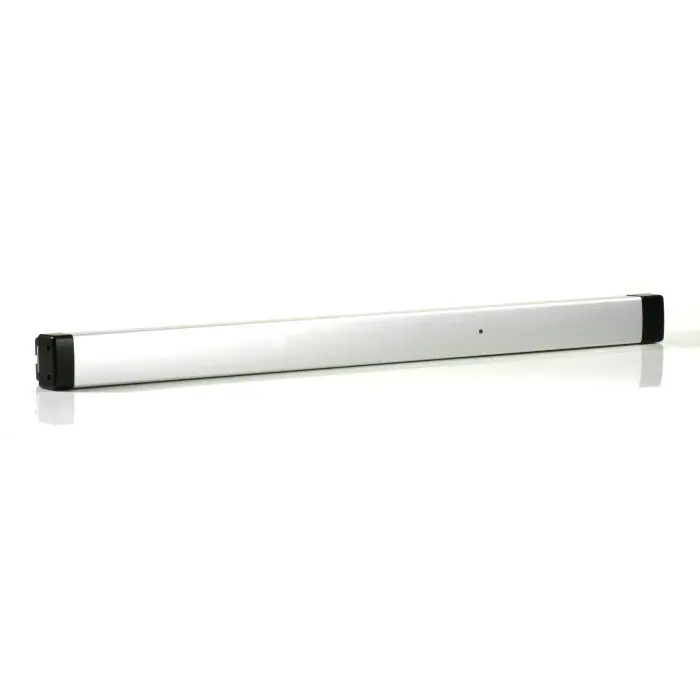

Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
Handing: Device is non-handed. Lever Entry Trim is field reversible.

Door Thickness: Suits 1-3/4″ standard, up to 2-1/4″.

Stile Width:  Minimum 2″ Stile. Fits narrow, medium, and wide stile aluminum doors.
Projection: 2-5/8″ when fully projected, 1-5/8″when dogged.
Dogging:  Standard dogging with hex key or cylinder dogging option. Electric dogging also available.
Fasteners:  Standard self-tapping screws.
Cylinders: See CYLINDERS section of this catalog for cylinder make, thumbturn and trim ring information. (Available separately). Cylinder x fixed Pull (function 03)
• Accepts any standard rim cylinder. 3080 entry trim ( function S 08, 09)
• Accepts any standard diameter mortise cylinder with MS®cam. Accommodates cylinder lengths from 1″ to 1-1/4″.
(Available separately).

Warranty: Five year limited.

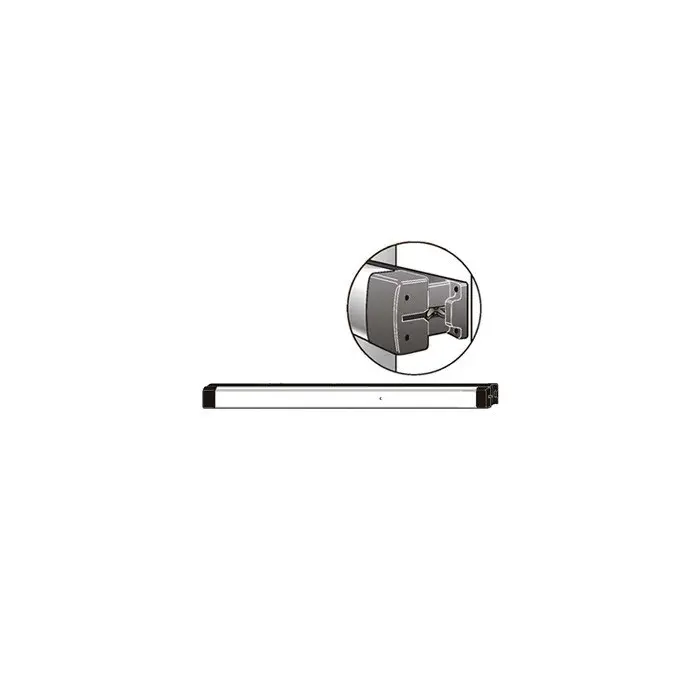

Starwheel Bolt
1. When door closes, the interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide springs over, locking the starwheel bolt to the strike.
2. When pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike. This unique interlock provides solid security and prevents jamb spreading.
