Description

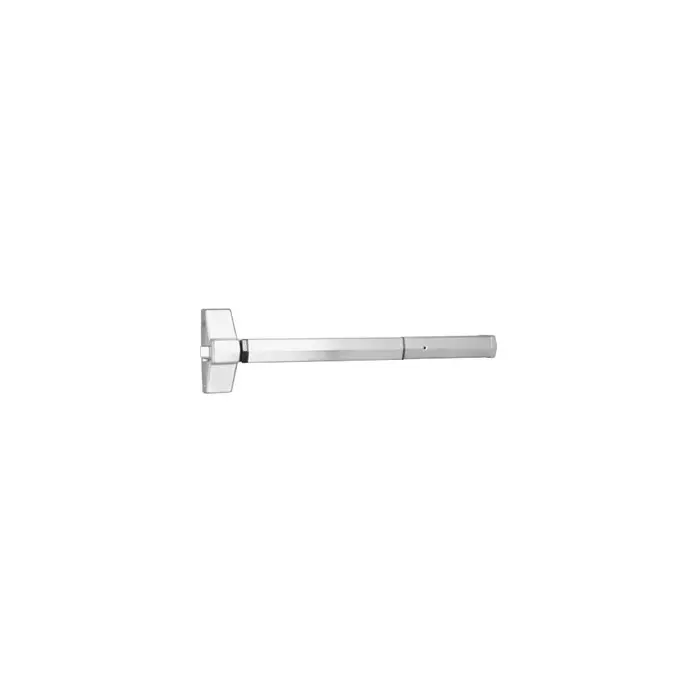

Application: Designed for application in high-use areas. The 7100 is a rim exit device to be used with single doors or pairs of doors constructed of metal, wood or composite materials. the 7100 comes in a variety of finishes and can be combined with a variety of trims to match any desired style.

• Non-handed for easy installation
• Single swing doors
• Pairs of doors with removable mullions
• Metal, wood or composite door materials

Lengths:
• 36″ (3ft.)
• 48″ (4ft.)

Finish: Stainless Steel – US32D

Product Description & Features:
• Designed for wide stile doors
• 3/4″ throw deadlocking stainless steel pullman latchbolt
• Electroplated ferrous components provide corrosion resistance
• Available in double cylinder function (handing must be specified)

Specifications:
• Door Opening Width:
– 24 for 24″ (60cm) doors
– 36 for 30″ – 36″ (76cm – 91cm) doors
– 48 for 36″ – 48″ (91cm – 122cm) doors
• Optional sizes can be special ordered. Consult Technical Product Support.
• Door Thickness: 1-3/4″ (44mm) standard. Optional door thicknesses available to 4-1/2″; specify door thickness when ordering.
• Minimum Stile Width: 4-1/2″ (114mm)
• Projection: 3-1/4″ (83mm) active, 2-3/4″ (70mm) dogged
• Latchbolt: 3/4″ (19mm) deadlocking stainless steel pullman-type

Strike: 757F, 793 optional (double door application, panic only)

Fasteners: Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware.

Trims:
-620F series escutcheon trim
-630F series pull/thumbpiece trim
-680F series offset pull trim
-540F series rose trim
-121NL cylinder only
Dogging Key:  60-7000-1131-036 5/32″ Hex dogging key supplied standard on panic devices

Dogging Kit:60-7000-0406-048 Dogging Kit replacement

Warranty: 5-year limited

Certification/Compliance:
• UL/cUL Listed: FVSR/FVSR7
• Panic hardware – GXHX/GXHX7
• Fire exit hardware (F) (4′ x 8′ single, 8′ x 8′ pairs, 3 hr.)
• ANSI/BHMA Certified: A156.3 Type 1, Grade 1
