Description

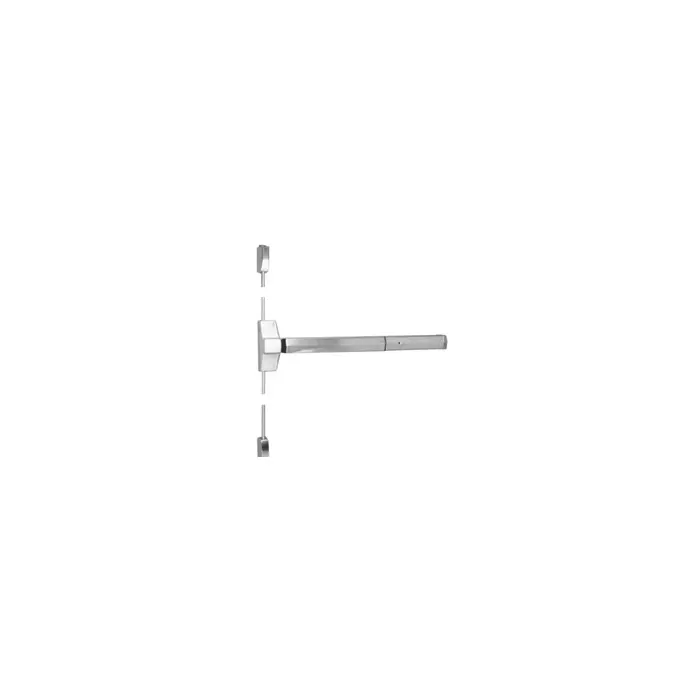

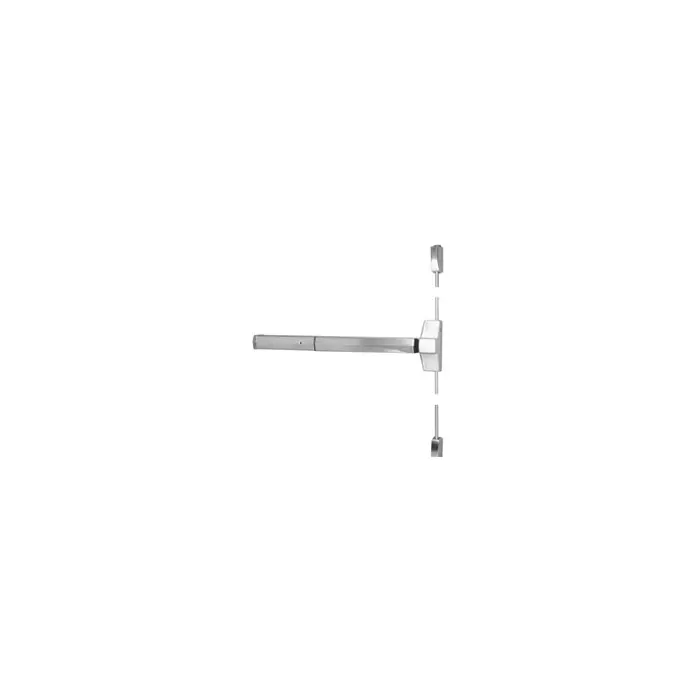

Application: The 7110 is a surface vertical rod exit device to be used on wide stile or flush doors up to 8′ (fire) and 10′ (panic) where two-point latching is desired.

• Pairs of doors
• Double egress
• Metal, wood or composite door materials

Lengths:
• 36″ (3ft.)
• 48″ (4ft.)

Finish: Stainless Steel – US32D

Product Description & Features:
• Designed for wide stile and flush doors
• Handed. Specify hand (field reversible)
• Bottom deadbolt for secure latching
• Fully adjustable roller strike

Specifications:
• Door Opening Width:
– 24 for 24″ (60cm) doors
– 36 for 30″ – 36″ (76cm – 91cm) doors
– 48 for 36″ – 48″ (91cm – 122cm) doors
• Optional sizes can be special ordered. Consult Technical Product Support.
• Door Opening Height: Standard door height 7′ (213cm), with the device centerline at 39-15/16″ (101cm) from floor.
• Optional heights up to 8′ (fire) and 10′ (panic) available by using rod extensions. For fire rated openings over 8′, see 7170F SVR.
• Door Thickness: 1-3/4″ (44mm) standard. Optional door thicknesses available to 4-1/2″; specify door thickness when ordering.
• Minimum Stile Width: 4-1/2″ (114mm)
• Projection: 3-1/4″ (83mm) active, 2-3/4″ (70mm) dogged
• Latchbolt: Top: 3/4″ (19mm) throw, pullman-type with automatic deadlatching
• Bottom: 5/8″ (16mm) throw deadbolt, held retracted during door swing
• Vertical Rods: 1/2″ O.D. tubular brass, bronze or stainless steel with rod guides

Strike:
-Top: Roller type 791.
-Bottom: Flush mounted 790. 794 floor strike optional (threshold openings).

Fasteners: Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware.

Trims:
-620F series escutcheon trim
-630F series pull/thumbpiece trim
-680F series offset pull trim
-540F series rose trim
Dogging Key: 60-7000-1131-036 5/32″ Hex dogging key supplied standard on panic devices

Dogging Kit:60-7000-0406-048 Dogging Kit replacement

Warranty: 5-year limited

Certification/Compliance:
• UL/cUL Listed: FVSR/FVSR7 – Panic hardware
• GXHX/GXHX7 – Fire exit hardware (F)(8′ x 8′ pairs, 3 hr.)
• ANSI/BHMA Certified: A156.3 Type 2, Grade 1
